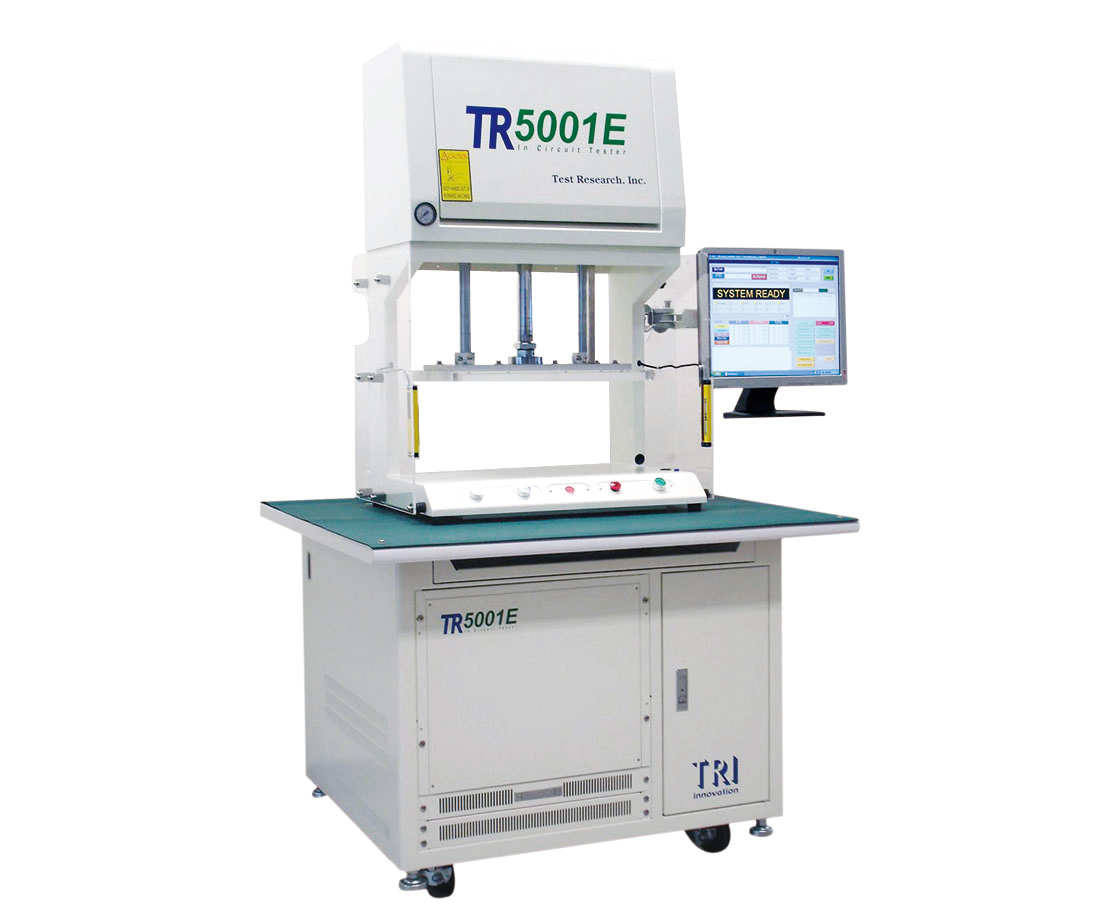

TR5001E

TR5001E搭配两段式压床将可降低治具成本，此ICT为PCBAs测试之可扩充平台。TR5001E可以依客户的测试需求，提供经济的测试解决方案，并且可完全满足大多数客户之测试要求。TR5001E整合MDA 和可选择性的ICT及Functional测试功能于同一平台,可以精简人力，缩短测试时间并提高产能。
• 模组化升级选项，可将MDA设备升级至ICT与功能测试系统
 • 高测试覆盖率之解决方案
 • 少量测点之解决方案与PXI模组功能测试扩充
 • 人性化接口搭配快速又简单的程序发展

Tester Specifications

Analog/hybrid test points	3200 analog or maximum digital test points: 1600
Operating System	Microsoft® Windows compatible PC, Windows 7-10
Fixture Type	Offline press type fixture

Standard Testing Components

Analog Test Hardware

6-wire measurement switching matrix Programmable AC/DC/DC High voltage and current sources AC/DC voltage, DC current measurement, frequency Component R/L/C measurement



Optional Components

Analog Hardware	TestJet vectorless open circuit detection Arbitrary Waveform Generator
Digital Testing	Non-multiplexing 1:1 per pin architecture with independent per-pin level setting DUT power supplies: 5 V@3 A, 3.3 V@3 A, 12 V@3A, -12 V@1 A and 24 V@3 A Programmable DUT power supplies: 75 V / 8 A max, 200W maximum output power Includes BScan Chain Test, BScan Cluster Test, BScan Virtual Nails Test, BScan Virtual Chain Test and IEEE1149.6 Test On-board Flash, EEPROM, MAC programming
Yield Management System	YMS 4.0

Board Handling

Max PCB Size

Standard: 420 x 300 mm Option: 500 x 350 mm or larger

Dimensions

WxDxH	1000 x 900 x 1680 mm
Weight	300 kg
